log4cxx::Layout Class Reference

Extend this abstract class to create your own log layout format. More...

#include <layout.h>

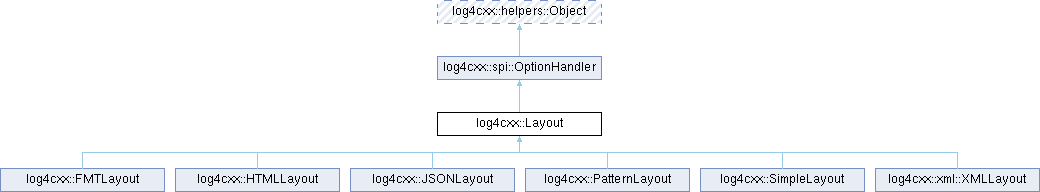

Inheritance diagram for log4cxx::Layout:

Public Member Functions
virtual	~Layout ()
virtual void	format (LogString &output, const spi::LoggingEventPtr &event) const =0
	Implement this method to create your own layout format.
void	format (LogString &output, const spi::LoggingEventPtr &event, helpers::Pool &p) const
virtual LogString	getContentType () const
	Returns the content type output by this layout.
virtual void	appendHeader (LogString &output)
	Append the header for the layout format.
void	appendHeader (LogString &output, helpers::Pool &p)
virtual void	appendFooter (LogString &output)
	Append the footer for the layout format.
void	appendFooter (LogString &output, helpers::Pool &p)
virtual bool	ignoresThrowable () const =0
	If the layout handles the throwable object contained within LoggingEvent, then the layout should return false.
void	activateOptions () override
	Activate the options that were previously set with calls to option setters.
void	activateOptions (helpers::Pool &)
Public Member Functions inherited from log4cxx::spi::OptionHandler
virtual	~OptionHandler ()
void	activateOptions (helpers::Pool &)
virtual void	setOption (const LogString &option, const LogString &value)
	Set option to value.
Public Member Functions inherited from log4cxx::helpers::Object
virtual	~Object ()
virtual const helpers::Class &	getClass () const =0
virtual bool	instanceof (const Class &clazz) const =0
virtual const void *	cast (const Class &clazz) const =0

Protected Member Functions
size_t	getFormattedEventCharacterCount () const
	The expected length of a formatted event excluding the message text.

Detailed Description

Extend this abstract class to create your own log layout format.

Constructor & Destructor Documentation

~Layout()

virtual log4cxx::Layout::~Layout ( )

virtual

Member Function Documentation

activateOptions() [1/2]

void log4cxx::Layout::activateOptions ( )

overridevirtual

Activate the options that were previously set with calls to option setters.

No action is performed in this implementation.

Implements log4cxx::spi::OptionHandler.

Reimplemented in log4cxx::PatternLayout.

activateOptions() [2/2]

void log4cxx::spi::OptionHandler::activateOptions

(

helpers::Pool &

)

Deprecated

This function is deprecated and will be removed in a future version. Call activateOptions() without parameters instead.

Deprecated

Use activateOptions() without parameters instead

appendFooter() [1/2]

virtual void log4cxx::Layout::appendFooter ( LogString & output )

virtual

Append the footer for the layout format.

The base class does nothing.

Reimplemented in log4cxx::HTMLLayout.

appendFooter() [2/2]

void log4cxx::Layout::appendFooter	(	LogString &	output,
		helpers::Pool &	p )

Deprecated

Backward compatability support will be removed in a future version.

Deprecated

Use appendFooter() without a Pool parameter instead

appendHeader() [1/2]

virtual void log4cxx::Layout::appendHeader ( LogString & output )

virtual

Append the header for the layout format.

The base class does nothing.

Reimplemented in log4cxx::HTMLLayout.

appendHeader() [2/2]

void log4cxx::Layout::appendHeader	(	LogString &	output,
		helpers::Pool &	p )

Deprecated

Backward compatability support will be removed in a future version.

Deprecated

Use appendHeader() without a Pool parameter instead

format() [1/2]

virtual void log4cxx::Layout::format ( LogString & output, const spi::LoggingEventPtr & event ) const

pure virtual

Implement this method to create your own layout format.

Implemented in log4cxx::FMTLayout, log4cxx::HTMLLayout, log4cxx::JSONLayout, log4cxx::PatternLayout, log4cxx::SimpleLayout, and log4cxx::xml::XMLLayout.

format() [2/2]

void log4cxx::Layout::format	(	LogString &	output,
		const spi::LoggingEventPtr &	event,
		helpers::Pool &	p ) const

Deprecated

Backward compatability support will be removed in a future version.

Deprecated

Use format() without a Pool parameter instead

getContentType()

virtual LogString log4cxx::Layout::getContentType ( ) const

virtual

Returns the content type output by this layout.

The base class returns "text/plain".

Reimplemented in log4cxx::HTMLLayout, and log4cxx::JSONLayout.

getFormattedEventCharacterCount()

size_t log4cxx::Layout::getFormattedEventCharacterCount ( ) const

protected

The expected length of a formatted event excluding the message text.

ignoresThrowable()

virtual bool log4cxx::Layout::ignoresThrowable ( ) const

pure virtual

If the layout handles the throwable object contained within LoggingEvent, then the layout should return false.

Otherwise, if the layout ignores throwable object, then the layout should return true.

The SimpleLayout, FMTLayout and PatternLayout return true. The other layouts return false.

Implemented in log4cxx::FMTLayout, log4cxx::HTMLLayout, log4cxx::JSONLayout, log4cxx::PatternLayout, log4cxx::SimpleLayout, and log4cxx::xml::XMLLayout.

---

The documentation for this class was generated from the following file:

• layout.h
